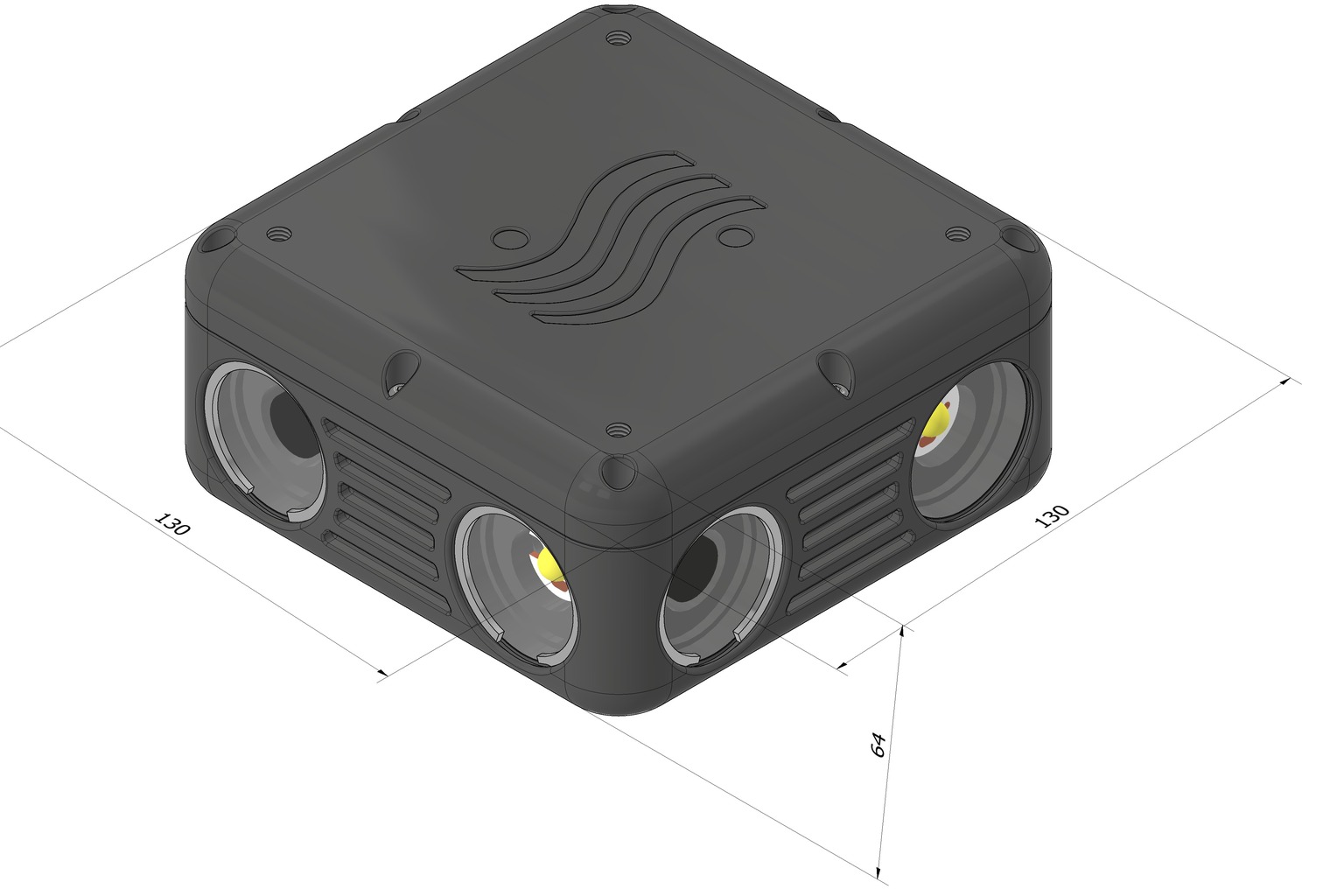

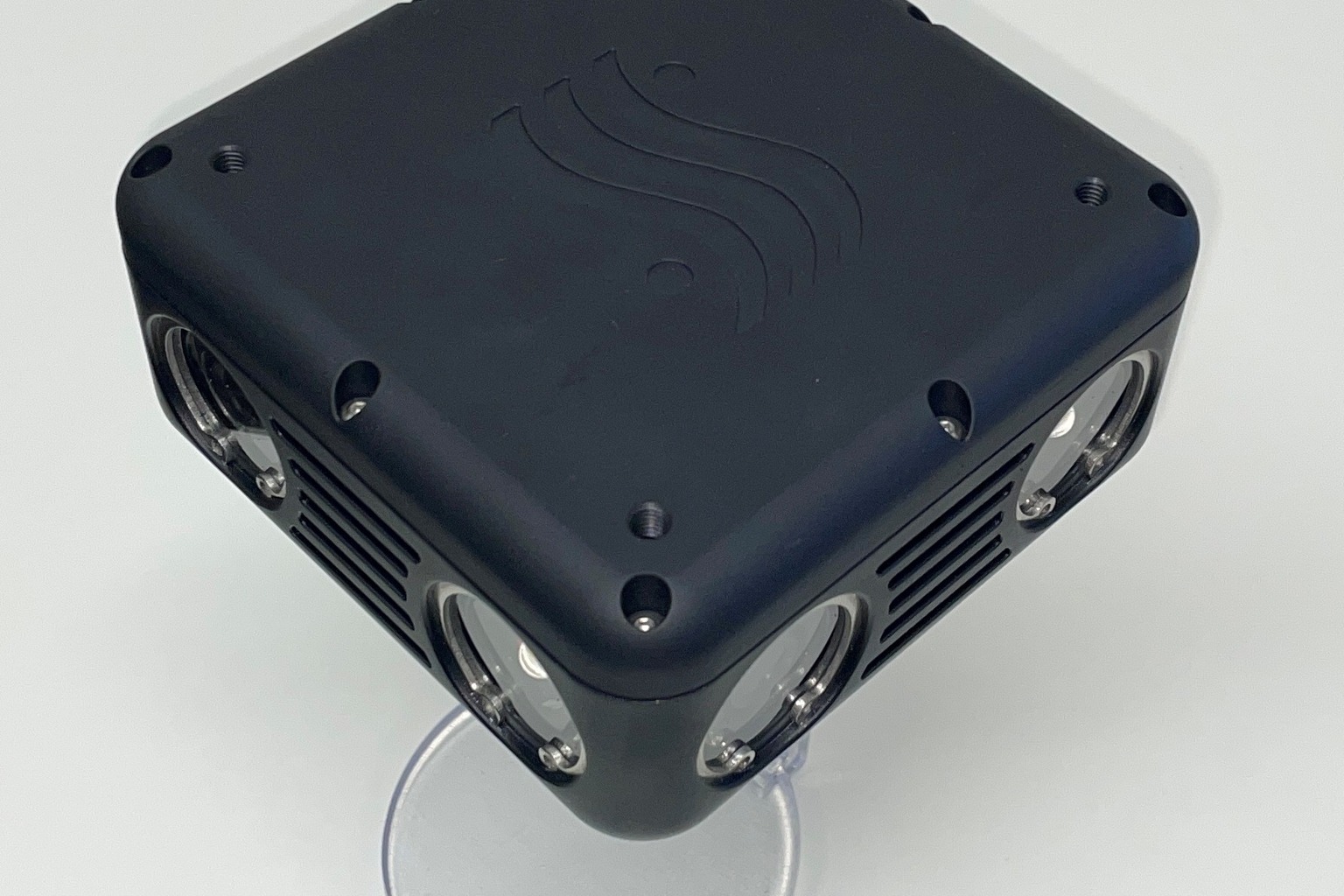

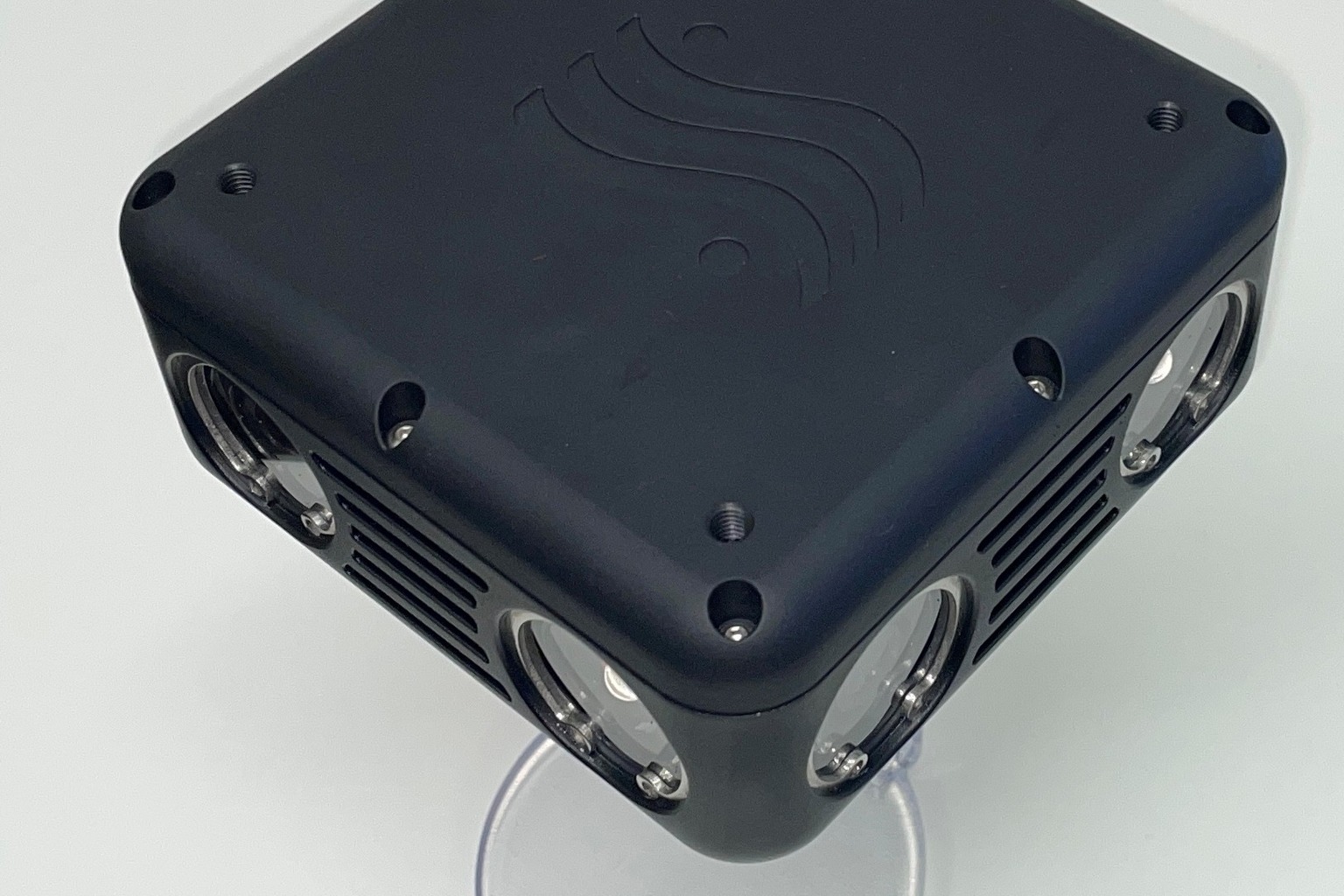

TRiOCam-IPQ Quad Subsea Camera System

The TRiOCam-IPQ is a four-camera subsea inspection system with integrated lights, designed to provide full directional coverage for underwater inspection and monitoring tasks.

Key Specifications

• Lens: 2.8 mm
• Horizontal angle of view: 106 in air, 77 in water
• Vertical angle of view: 56 in air, 41 in water
• Power: 19-30 VDC @ 3.1 A max
• Transmission protocols: H.264, H.265, ONVIF, RTSP
• Resolutions: 720p; 1080p; 1269p; 1440p
• Light sensitivity: 0.001 lx
• Light output: 2000 lm in each direction
• Light control: PWM, 0-5 V
• Depth ratings: 4000 m; 6000 m

Key Features

• Four integrated cameras
• Integrated lighting in each direction
• Wide coverage for inspection tasks
• Depth-rated subsea deployment

Typical Applications

• Full-coverage underwater inspection
• Subsea monitoring
• ROV inspection payloads
• Fixed multi-direction observation
