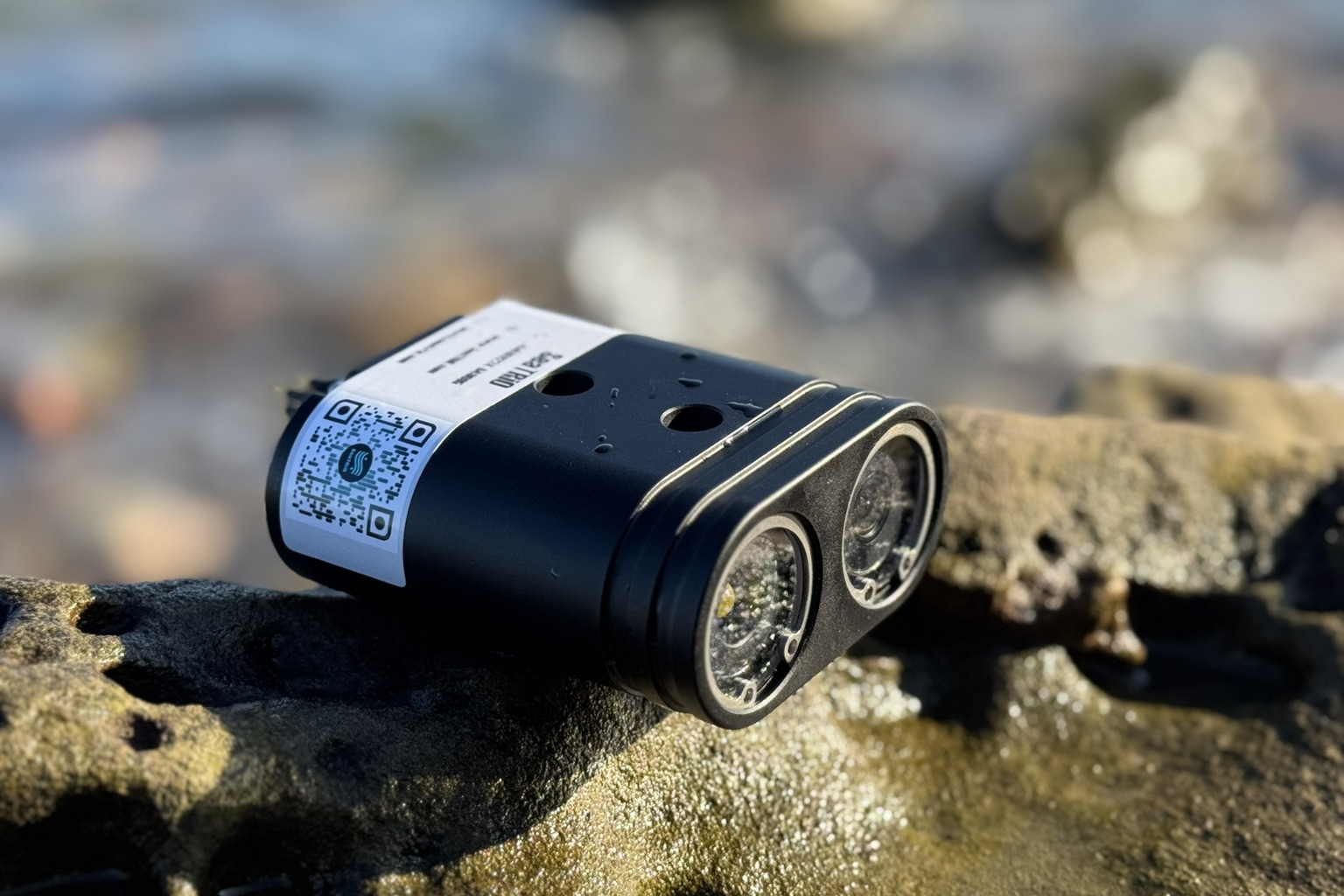

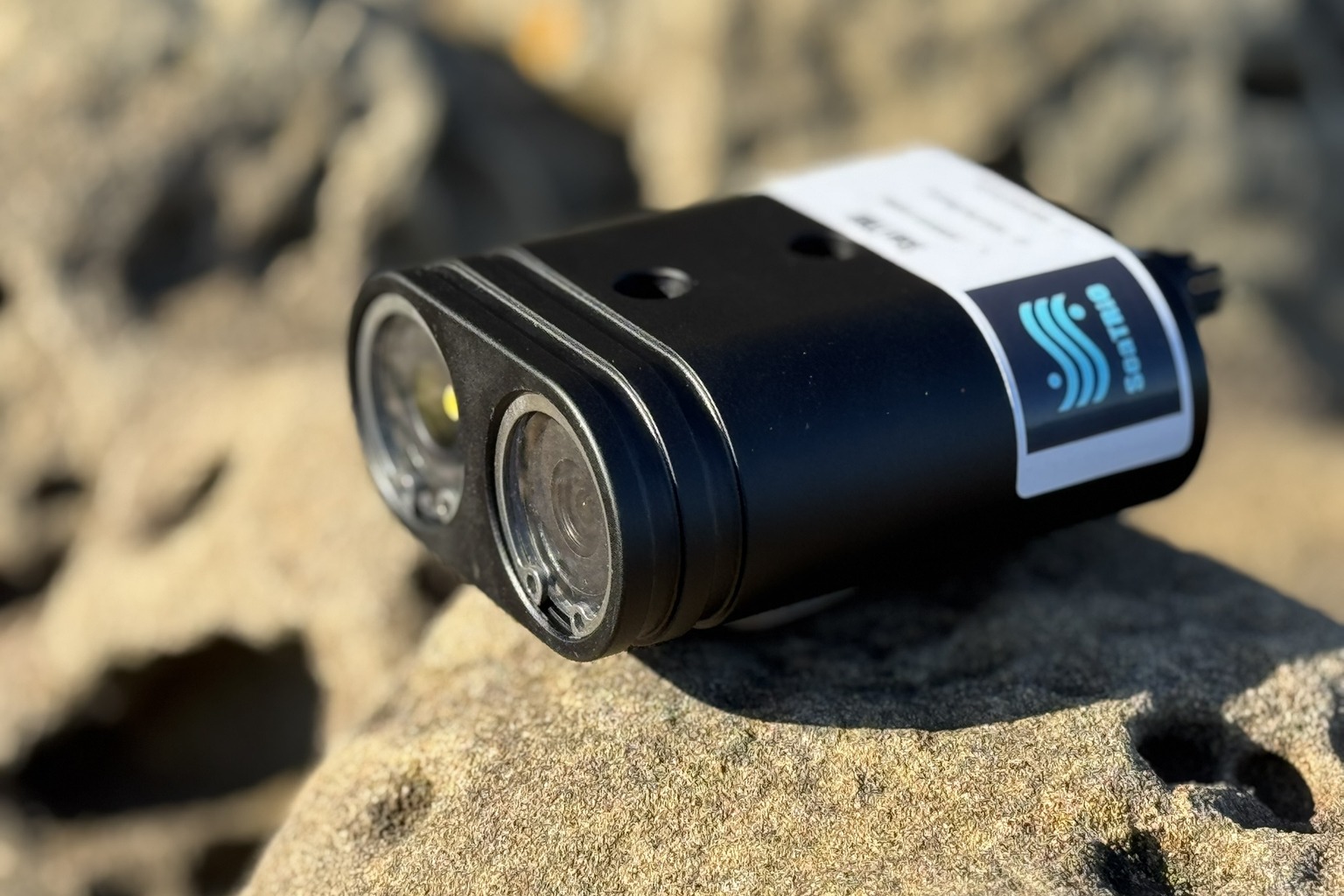

TRiOCam-IPD Subsea Camera with Integrated Light

The TRiOCam-IPD combines a high-resolution subsea IP camera with integrated lighting in a compact package for underwater inspection, observation, and deployment where space and simplicity matter.

Key Specifications

• Lens: 2.8 mm
• Horizontal angle of view: 106 in air, 77 in water
• Vertical angle of view: 56 in air, 41 in water
• Power: 19-30 VDC @ 750 mA
• Transmission protocols: H.264, H.265, ONVIF, RTSP
• Resolutions: 720p; 1080p; 1269p; 1440p
• Light sensitivity: 0.001 lx
• Light output: 2000 lm
• Light control: PWM, 0-5 V
• Depth ratings: 4000 m; 6000 m

Key Features

• Integrated camera and light
• High-resolution imaging
• Light output with control options
• Depth-rated subsea deployment

Typical Applications

• Compact inspection systems
• ROV imaging
• Fixed underwater monitoring
• Low-light subsea observation
