TRiOLas-S High Performance Underwater Laser

The TRiOLas-S is a high-performance underwater laser designed for advanced industrial applications requiring precision and versatility. It supports diver and ROV operations, machine-vision alignment, subsea measurement systems, and parallel beam range estimation. Available in blue, green, and red wavelengths, the TRiOLas-S uses a sapphire front lens for durability in harsh underwater environments and delivers dependable optical performance during extended deployments.

Key Specifications

• Supply: 24 VDC, 160 mA
• Operating temperature: -10 to +40 C
• Laser power output: Blue 100 mW; Green 50 mW; Red 130 mW
• Wavelengths: Blue 450 nm; Green 520 nm; Red 650 nm
• Connector: MCBH2M or MCBHA2M, others on request
• Available models: TRiOLas-S4000 and TRiOLas-S6000
• Depth ratings: 4000 m or 6000 m

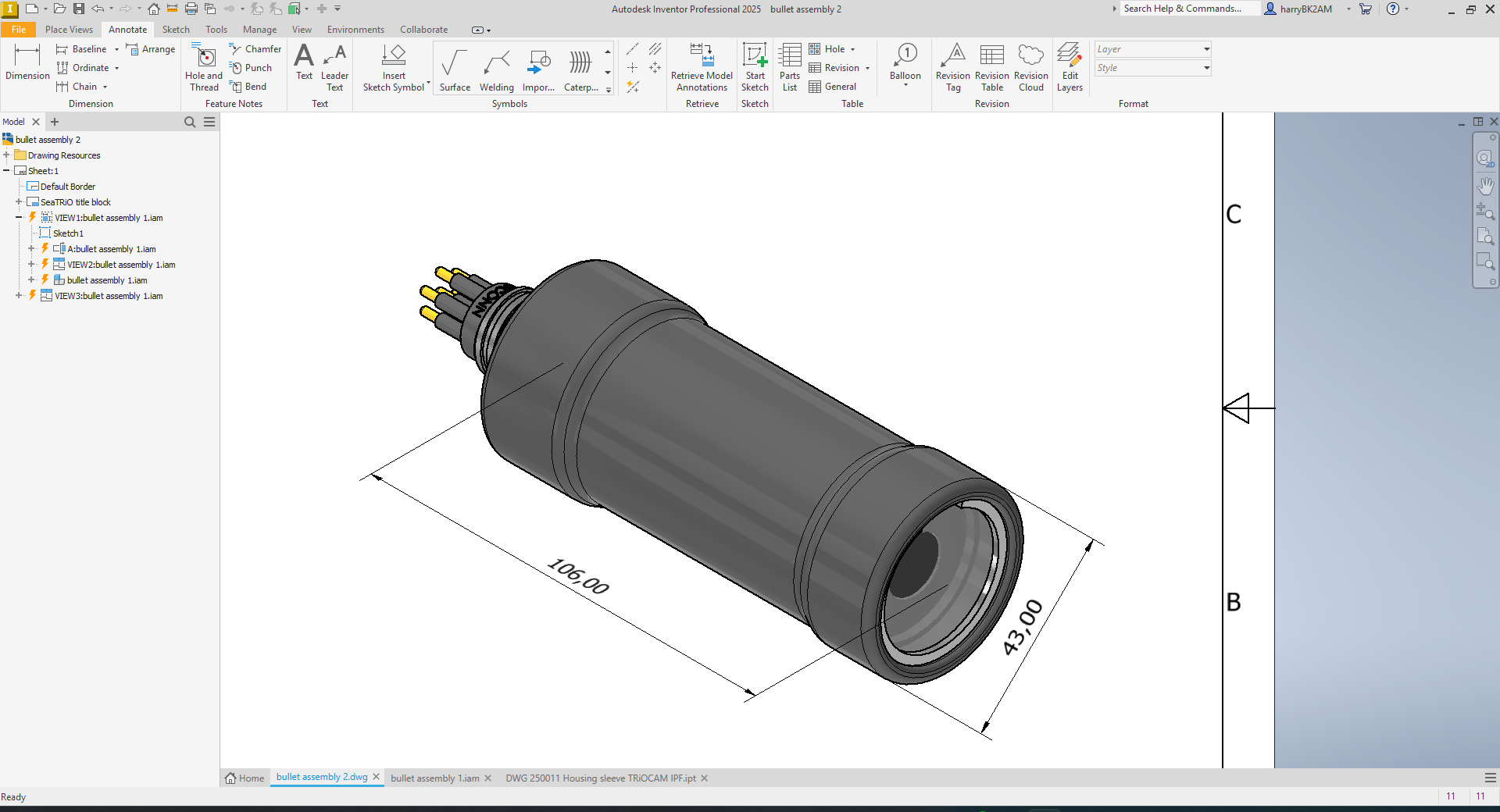

• Dimensions: 43 mm diameter; 106 mm length (S4000) or 112 mm length (S6000)
• Weight: 340 g in air / 240 g in water (S4000); 460 g in air / 230 g in water (S6000)
• Material: Anodised aluminium (S4000) or titanium (S6000)

Key Features

• Available in blue, green, and red wavelengths
• High pointing accuracy for precision tasks
• Sapphire front lens for scratch and biofouling resistance
• Compact cylindrical housing for easy integration
• Class 3B laser product

Typical Applications

• Subsea measurement systems
• Machine-vision alignment
• Parallel beam range estimation
• ROV and diver support
• Dimensional analysis in subsea environments

View Datasheet

Download STEP File
